260PCS Heat Shrink Solder Butt Wire Seal Sleeve Splice Connectors Waterproof

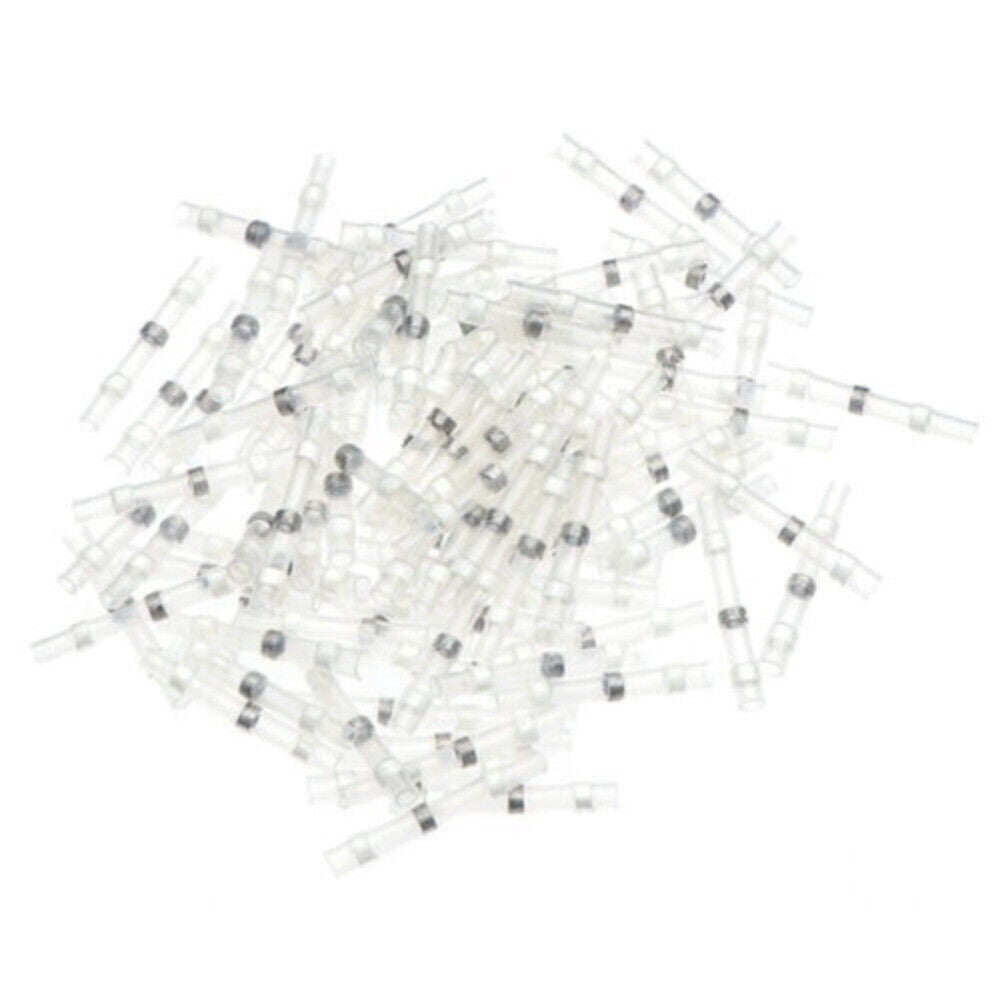

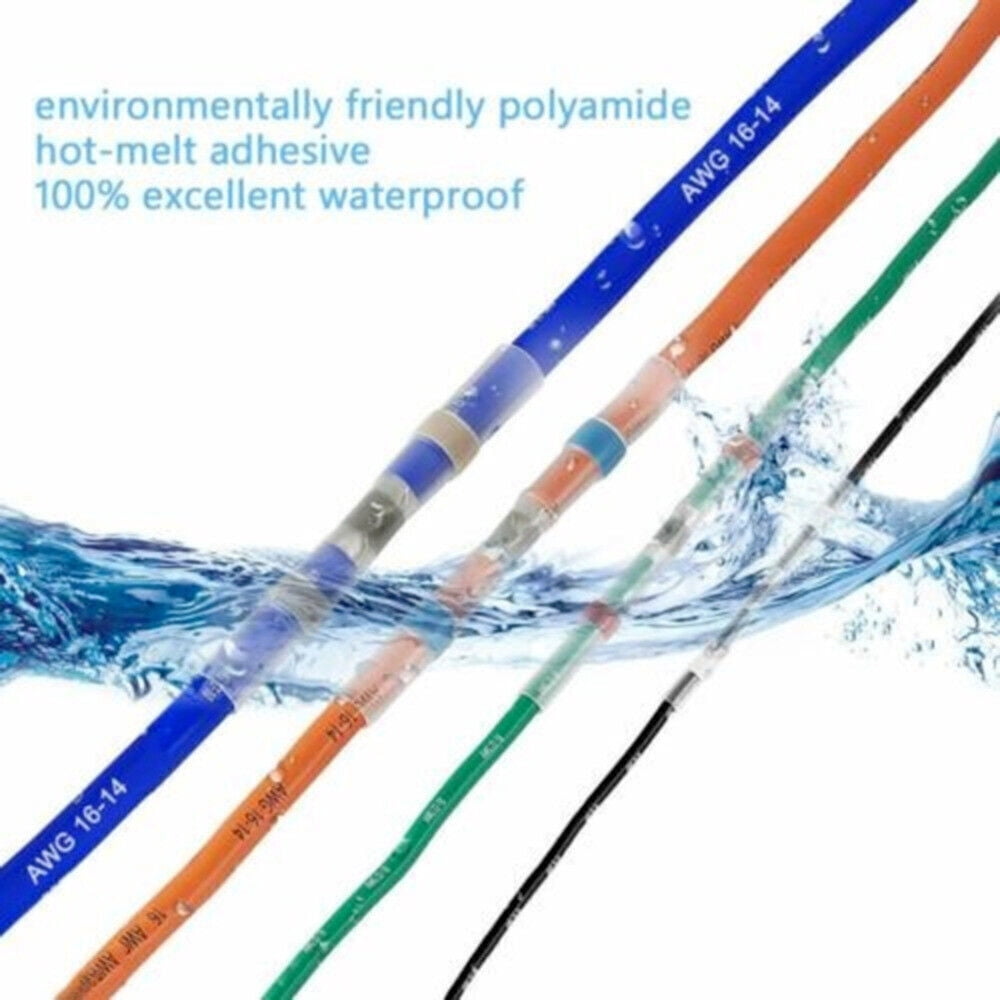

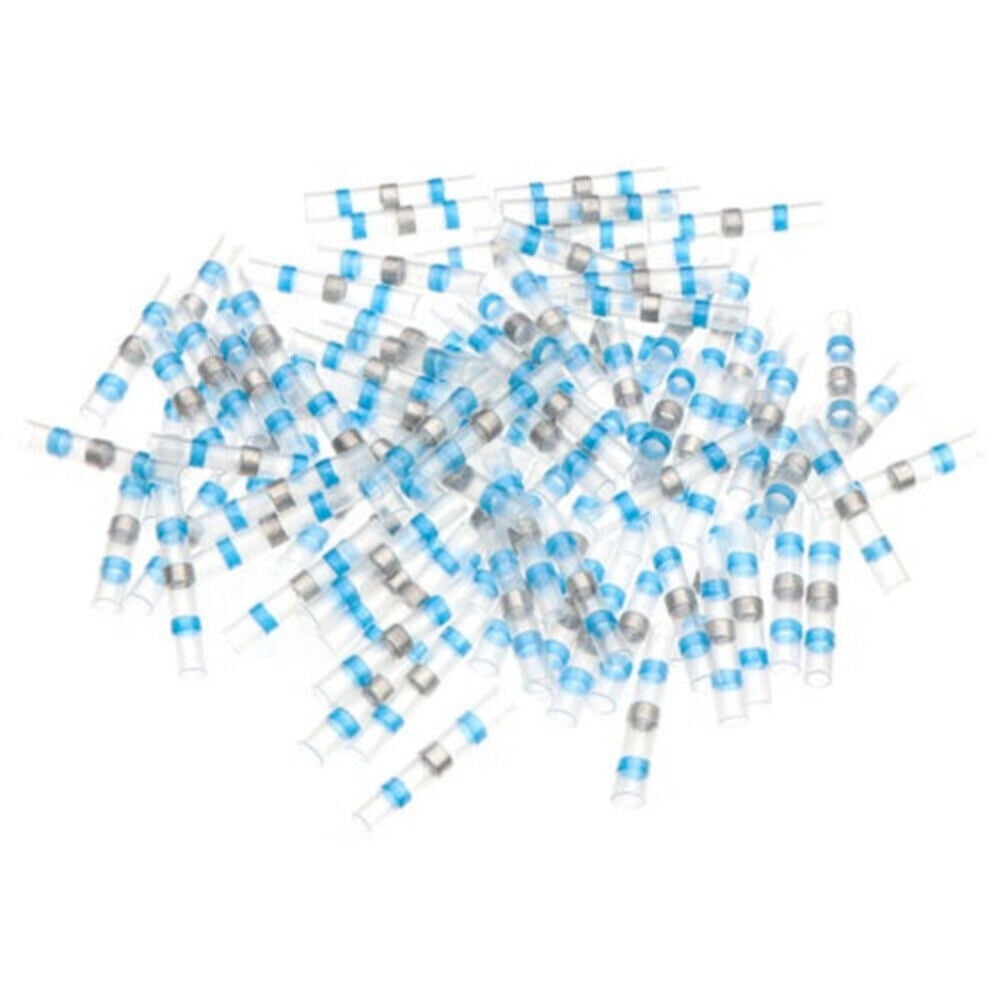

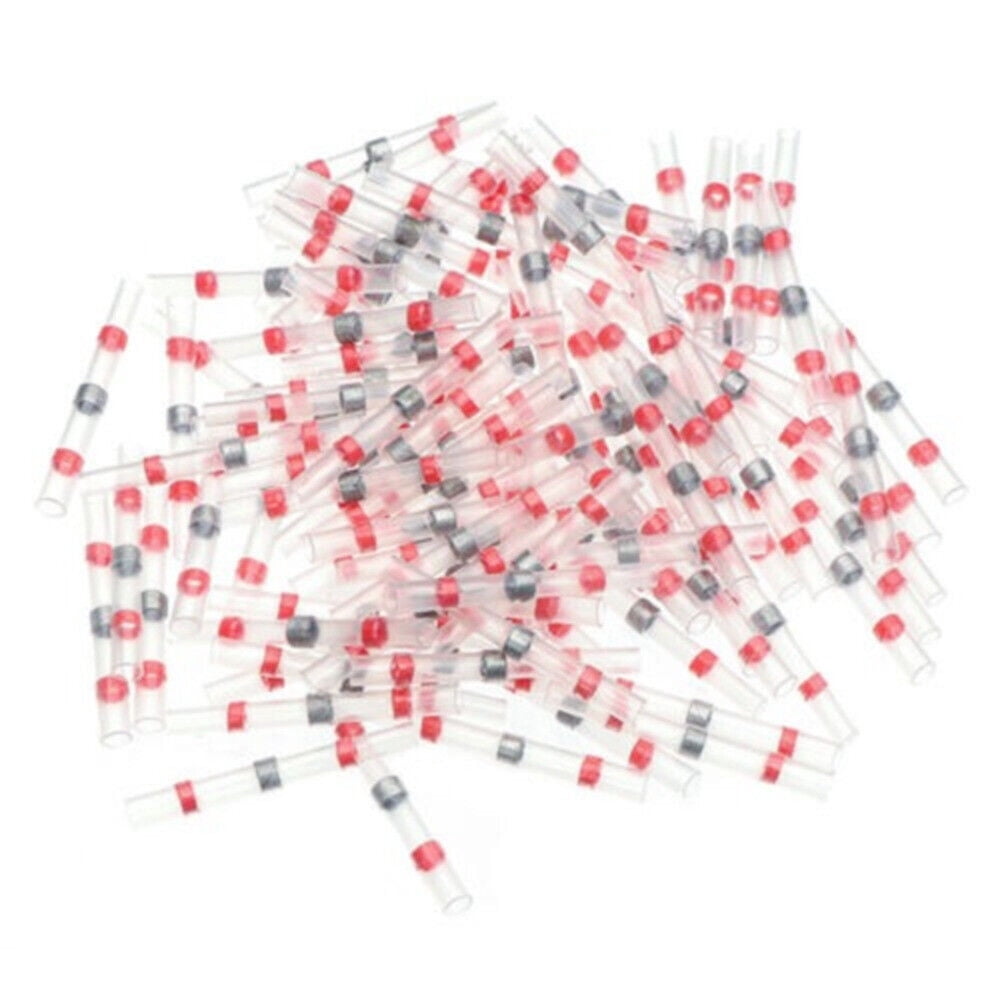

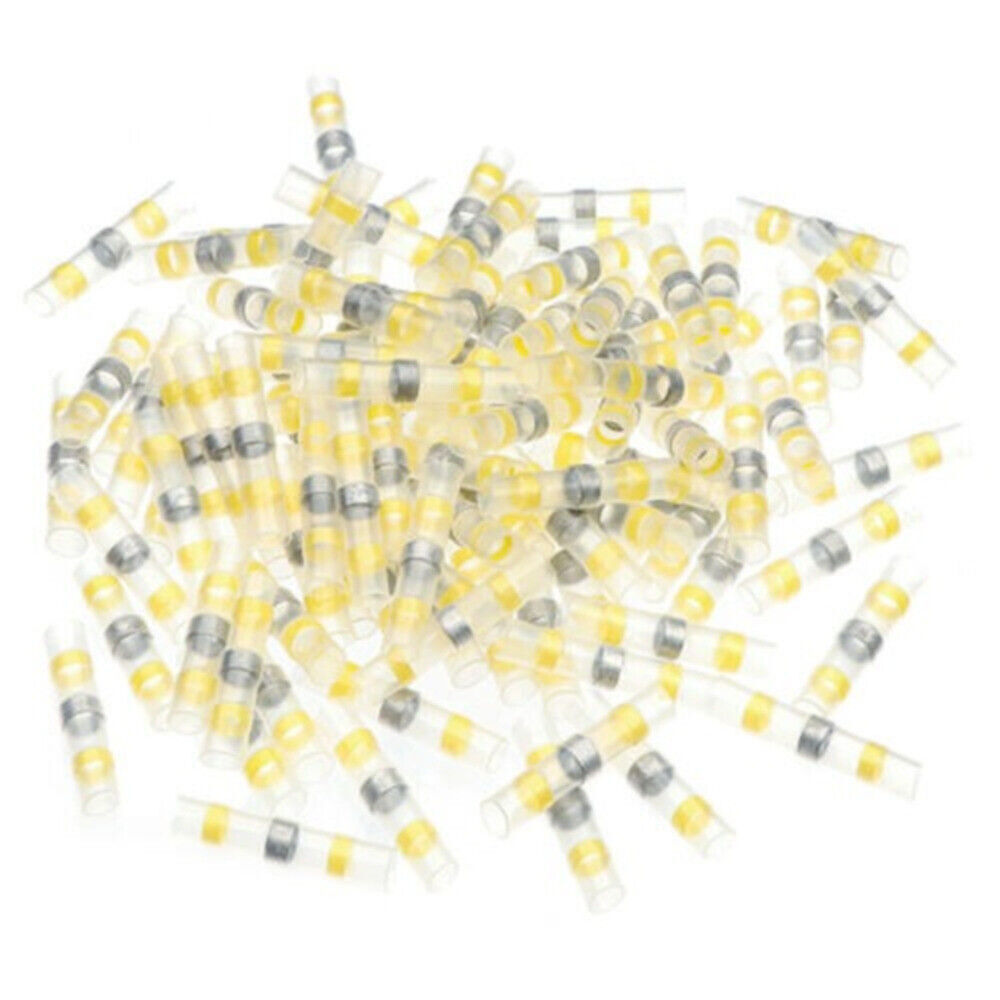

260PCS Heat Shrink Solder Butt Wire Seal Sleeve Splice Connectors Waterproof<br>Features:<br><br>An easy one step connection of wires.<br><br>Soldered, insulated and sealed can be ideal.<br><br>Use in marine and automobile applications.<br><br>Melt adhesive in inside solder and seal and with advanced waterproof function.<br><br>Polyolefin heat shrink butt connectors improved pullout strength.<br><br>Provide seal, strain relief, cable check and insulation.<br><br><br><br>Technical Specifications:<br><br>Shrinkage ratio 3:1<br><br>Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside<br><br>Color coded connector tubing<br><br>Heat activated waterproof adhesive<br><br>Low temperature solder sleeve<br><br>Minimum shrink temperature: 80°C<br><br>Minimum temperature for solder to melt: 138°C<br><br><br><br>Sizes and Quantity:<br><br>40x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² 12-10 AWg<br><br>120x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² 16-14 AWg<br><br>180x Red Connectors: Diameter 2.7mm, Cable cross-section 0.5-1.0mm ² 22-18AWG<br><br>100x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm² 26-24 AWg<br><br>80x Green Connectors:Diameter 3.5 mm Cable cross section1.0-1.5mm² 18-16AWG<br><br><br><br>Package Included:<br><br>26PCS Heat Shrink Solder Wire Connectors<br><br><br><br>Note:<br><br>Please allow 1-5mm errors due to manual measurement.<br><br>Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
